Technical
Container Measurements
Standard 20 |
|||||||
|---|---|---|---|---|---|---|---|
Inside Length |
Inside Width |
Inside Height |
Door Width |
Door Height |
Capacity
| Tare Weight |
Max Cargo |
19' 4" |
7' 8" |
7' 10" |
7' 8" |
7' 6" |
1,172 Cft |
4,916 lbs |
47,900 lbs |
5.900 m |
2.350 m |
2.393 m |
2.900 m |
2.343 m |
32.2 Cbm |
2.230 kgs |
21.770 kgs |
Standard 40 |
|||||||
19' 4" |
7' 8" |
7' 10" |
7' 8" |
7' 6" |
2,390 Cft |
8,160 lbs |
59,040 lbs |
12.036 m |
2.350 m |
2.392 m |
2.040 m |
2.080 m |
67.7 Cbm |
3.700 kgs |
26.780 kgs |
|
|||||||
| Upgraded 20 | |||||||
Inside Length |
Inside Width |
Inside Height |
Door Width |
Door Height |
Capacity |
Tare Weight |
Max Cargo |
19' 4" |
7' 8" |
7' 10" |
7' 8" |
7' 6" |
1,150 Cft |
5,060 lbs |
61,996 lbs |
5.900 m |
2.311 m |
2.390 m |
2.286 m |
2.280 m |
32.6 Cbm |
2.300 kgs |
28.180 kgs |
High Cube 40 |
|||||||
39' 5" |
7' 8" |
8' 10" |
7' 8" |
8' 5" |
2,694 Cft |
8,750 lbs |
58,450 lbs |
12.036 m |
2.350 m |
2.697 m |
2.383 m |
2.585 m |
76.3 Cbm |
3.970 kgs |
26.570 kgs |
| Reefer 20 | |||||||
Inside Length |
Inside Width |
Inside Height |
Door Width |
Door Height |
Capacity |
Tare Weight |
Max Cargo |
17' 8" |
7' 5" |
7' 5" |
7' 5" |
7' 3" |
1,000 Cft |
7,040 lbs |
45,760 lbs |
5.425 m |
2.275 m |
2.260 m |
2.258 m |
2.216 m |
28.3 Cbm |
3.200 kgs |
20.800 kgs |
Reefer 40 |
|||||||
37' 8" |
7' 5" |
7' 2" |
7' 5" |
7' 0" |
2,040 Cft |
10,780 lbs |
56,276 lbs |
11.493 m |
2.270 m |
2.197 m |
2.282 m |
2.155 m |
57.8 Cbm |
4.900 kgs |
25.580 kgs |
Reefer 40 High Cube |
|||||||
37' 11" |
7' 6" |
8' 2" |
7' 6" |
8' 0" |
2,344 Cft |
9,900 lbs |
57,561 lbs |
11.570 m |
2.294 m |
2.500 m |
2.294 m |
2.440 m |
66.6 Cbm |
4.500 kgs |
25.980 kgs |
|
|||||||
| Open top 20 | |||||||
Inside Length |
Inside Width |
Inside Height |
Door Width |
Door Height |
Capacity |
Tare Weight |
Max Cargo |
19' 4" |
7' 7" |
7' 8" |
7' 6" |
7' 2" |
1,136 Cft |
5,280 lbs |
47,620 lbs |
5.894 m |
2.311 m |
2.354 m |
2.286 m |
2.184 m |
32.2 Cbm |
2.400 kgs |
21.600 kgs |
Open top 40 |
|||||||
39' 5" |
7' 8" |
7' 8" |
7' 8" |
7' 5" |
2,350 Cft |
8,490 lbs |
58,710 lbs |
12.038 m |
2.350 m |
2.345 m |
2.341 m |
2.274 m |
65.5 Cbm |
3.850 kgs |
26.630 kgs |
| Flat Rack 20 | |||||||
Inside Length |
Inside Width |
Inside Height |
Door Width |
Door Height |
Capacity |
Tare Weight |
Max Cargo |
18' 5" |
7' 3" |
7' 8" |
7' 6" |
7' 2" |
1,136 Cft |
5,280 lbs |
47,620 lbs |
5.620 m |
2.200 m |
2.354 m |
2.286 m |
2.184 m |
32.2 Cbm |
2.400 kgs |
21.600 kgs |
Flat Rack 40 |
|||||||
39' 5" |
7' 8" |
7' 4" |
– |
– |
– |
5,578 lbs |
47,333 lbs |
12.038 m |
2.350 m |
2.233 m |
– |
– |
– |
2.530 kgs |
21.470 kgs |
| Flat Rack Collapsible 20 | |||||||
Inside Length |
Inside Width |
Inside Height |
Door Width |
Door Height |
Capacity |
Tare Weight |
Max Cargo |
18' 6" |
7' 3" |
7' 4" |
– |
– |
– |
6,061 lbs |
61,117 lbs |
5.618 m |
2.208 m |
2.233 m |
– |
– |
– |
2.750 kgs |
27.730 kgs |
Flat Rack Collapsible 40 |
|||||||
39' 7" |
6' 10" |
6' 5" |
– |
– |
– |
12,787 lbs |
85,800 lbs |
12.080 m |
2.126 m |
2.043 m |
– |
– |
– |
5.800 kgs |
39.000 kgs |
| Platform 20 | |||||||
Inside Length |
Inside Width |
Inside Height |
Door Width |
Door Height |
Capacity |
Tare Weight |
Max Cargo |
19' 11" |
8' 0" |
7' 4" |
– |
– |
– |
6,061 lbs |
52,896 lbs |
6.058 m |
2.438 m |
2.233 m |
– |
– |
– |
2.750 kgs |
24.000 kgs |
Platform 40 |
|||||||
40' 0" |
6' 10" |
6' 5" |
– |
– |
– |
12,783 lbs |
86,397 lbs |
12.18 m |
2.40 m |
1.95 m |
– |
– |
– |
5.800 kgs |
39.200 kgs |
Unit Load Devices

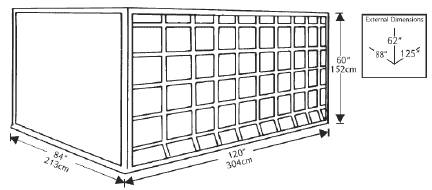

LD9 – AAP
Wide body aircraft. Full width lower deck container.
Suitable for the following aircraft: Boeing 747, 767 & 777.
Volume 10.0 cbm Tare weight 200 kgs Max Gross Weight 747, 767, 777 - 6033kgs, 4626kgs, 4626kgs

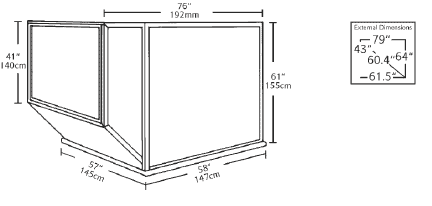

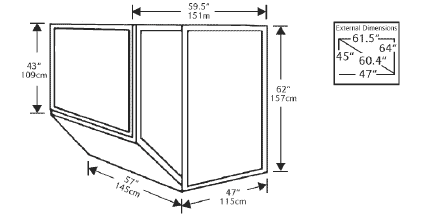

LD3– AKE
Wide body aircraft. Half width lower deck container.
Suitable for the following aircraft: Boeing 747, 767, 777, 757-200F
Volume 4.2cbm Tare weight 72 kgs Max Gross Weight 1588 kgs

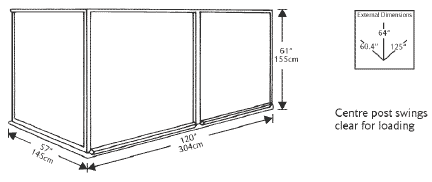

LD11– ALP/PLA
Wide body aircraft. ALP: Full width lower deck container.
PLA: Full width lower deck pallet
Suitable for the following aircraft: Boeing 747 & 777ALP PLA
Volume 6.8cbm 7.0 cbm
Tare weight 185 kgs 73 kgs
MaxGross Weight 3175 kgs
PAP/P1P/PAG
Wide body aircraft. Full width pallet with net.
Suitable for the following aircraft: Boeing 747, 767, 777
Volume 11.9 cbm (with allowable overhang)
Tare weight 120 kgs Max Gross Weight 747, 767, 777 - 6033 kgs, 4626kgs, 4626kgs
PAP/P1P/PAG For 757-200 Freighter
Wide body aircraft. Full width lower deck container.
Suitable for the following aircraft: Boeing 747, 767, 777, 757-200F
Volume 9.83 cbm Tare weight 120 kgs Max Gross Weight 4264 kgs

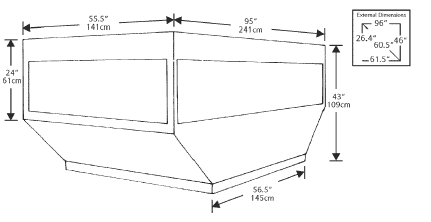

AKH
Lower deck container
Suitable for the following aircraft: A320
Volume 3.4 cbm Tare weight 76 kgs Max Gross Weight 1134 kgs

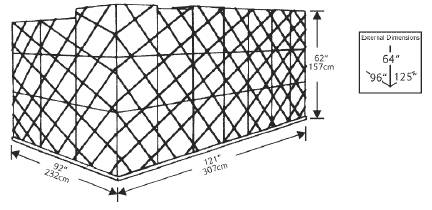

PMC
Lower deck pallet.
Suitable for the following aircraft: Boeing 747 & 767
Volume 12.7 cbm Tare weight 130 kgs Max Gross Weight 747/767 5034 kgs / 5103 kgs
Please note that the maximum gross weight is variable for the different aircraft types in case of transfer
LD2– APE
Wide body aircraft. Half width lower deck container.
Suitable for the following aircraft: Boeing 767
Volume 3.5 cbm Tare weight 70 kgs Max Gross Weight 1225 kgs

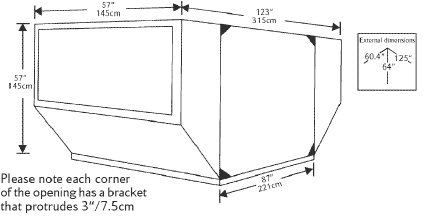

AQF
Lower deck container.
Suitable for Boeing 767 only.
Volume 7.9 cbm Tare weight 118 kgs Max Gross Weight 2449 kg
Please note each corner of the opening has a bracket that protrudes 7.5cm
